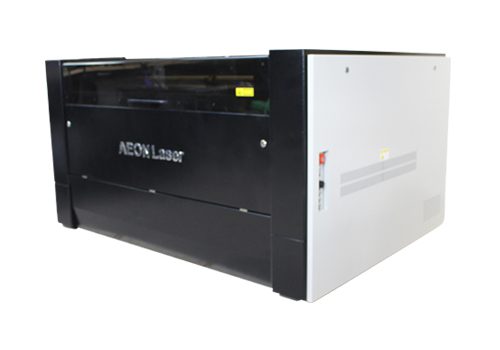

SPECIFICATION FOR NOVA 13
Horizontal Processing Envelope 51.18 inch x 35.43 inch
Vertical Processing Envelope 7.87 inch
Machine Footprint without stand 54.33 inch * 75.59 inch * 48.81 inch
Cutting Thickness 0-1.18 inch (depends on different materials)
Engraving Speed 39.37 inch/s
Crate Size 57.87 * 75.59 * 48.81 inch
Minimum Font Size 0.03 inch x 0.03 inch
Positioning Accuracy <=0.000393 inch
Fume Port Size 5.90 inch
Horizontal Processing Envelope 1300 x 900 mm
Vertical Processing Envelope 200 mm
Machine Footprint without stand 1380 * 1920 * 1240 mm
Cutting Thickness 0-30 mm (depends on different materials)
Engraving Speed 1000mm/s
Crate Size 1470 * 1920 * 1240 mm
Minimum Font Size 1.0 x 1.0 mm
Positioning Accuracy <=0.01 mm
Fume Port Size 150 mm
Standard laser Wattage 80W
Max Acceleration Speed 1.8G
Net Weight 430Kg
Net Packed Weight 520Kg
Voltage 110v
Rated Power 1905W (+Laser Tube)
max scanning precision 4000 DPI
Cooling Method Laser Head External air pump
Cooling Method (Co2 Glass Tube) 5000/5200 chiller, 7L
AutoFocus Included
Red Dot Positioning Beam combiner
Control Panel Keypad & LCD display
Compatible operating systems Windows & Mac
Co2 Glass Tube 80W~150W,RECI 75W~150W
RF Metal Tube RF Tube 30W(air cooling), 40W~100W (water cooled) Davi Laser, 40W~100W Iradion made in USA (Available in NEW NOVAs)
Ceramic Tube 40-100W Iradion made in the USA
