SPECIFICATION FOR MIRA 9
Horizontal Processing Envelope 35.43 inch x 23.62 inch
Vertical Processing Envelope 5.90 inch
Machine Footprint without stand 51.18 inch * 39.76 inch * 21.65 inch
Cutting Thickness 0-0.39 inch (depends on different materials)
Engraving Speed 47.24 inch/s
Crate Size 55.11 * 39.37 * 240.15 inch
Minimum Font Size 0.03 inch x 0.03 inch
Positioning Accuracy <=0.00039 inch
Fume Port Size 5.90 inch
Horizontal Processing Envelope 900 x 600 mm
Vertical Processing Envelope 150 mm
Machine Footprint without stand 1300 mm * 1010 mm * 550 mm
Cutting Thickness 0-10 mm (depends on different materials)
Engraving Speed 1200 mm/s
Crate Size 1400 * 1000 * 6100 mm
Minimum Font Size 1.0 x 1.0 mm
Positioning Accuracy <=0.01 mm
Fume Port Size 150 mm
Standard laser Wattage 60W
Max Acceleration Speed 5G
Net Weight 220Kg
Net Packed Weight 255Kg
Voltage 110v
Rated Power 1440W (+Laser Tube)
max scanning precision 4000 DPI
Cooling Method Laser Head Builin Air Pump
Cooling Method (Co2 Glass Tube) 5000 chiller, 2.6L
AutoFocus Included
Red Dot Positioning Beam combiner
Control Panel Keypad & LCD display
Compatible operating systems Windows & Mac

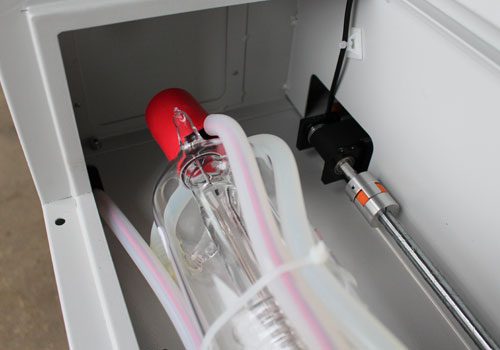

Co2 Glass Tube 40W~100W, RECI 75W~100W
RF Metal Tube RF 30W, Davi Laser
Ceramic Tube 40-100W Iradion made in the USA
Other Compatible Software CorelDraw/Photoshop/AutoCAD/All kinds of Embroidery Software
Graphic Format Supported DSP/PLT/BMP/DXF/AI/DWG
